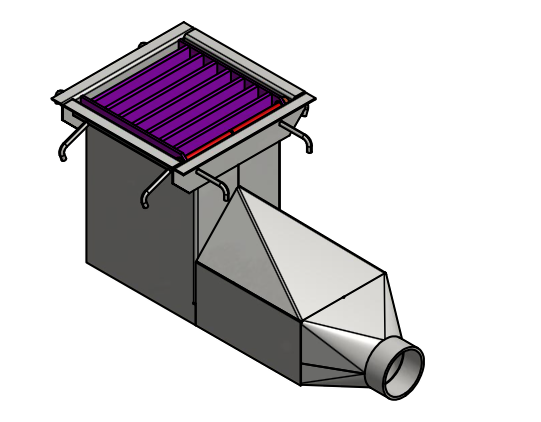

Custom Sump Box Drain with water trap
Our custom fabricated stainless drains are one of the most sought after in the country. Combining creativity, discipline, and state-of-the-art equipment, we are able to meet your drainage needs.

Whether you need an entire drain system for your new plant or a single drain for replacement emergencies, our shop will deliver the quality you want and need.
Stainless Steel Floor Drain

Standard Stainless Steel Floor Drain: (Stocked Item)

  • 12” x 12” Square Top - 1/2” Stainless Top Plate
  • 12 Gauge (12GA) Body (seamless Spun)
  • 1/2” Thick Solid, drain cover
  • 6” deep sump, radius corners
  • Concrete setting ring (12GA)
  • 3” or 4” sch 10 Outlet (up to 8” optional)
  • (1) Stainless steel basket

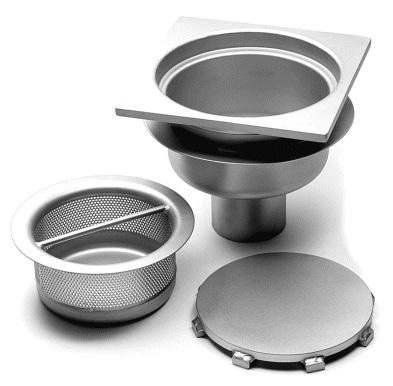

Round Top Stainless Steel Drain

Round Stainless Steel Floor Drain: (Stocked Item)

  • 12” Round Top - 1/2” Stainless Top Plate
  • 12 Gauge (12GA) Body (seamless Spun)
  • 1/2” Thick Solid, drain cover
  • 6” deep sump, radius corners
  • Concrete setting ring (12GA)
  • 3” or 4” sch 10 Outlet (up to 8” optional)
  • (1) Stainless steel basket

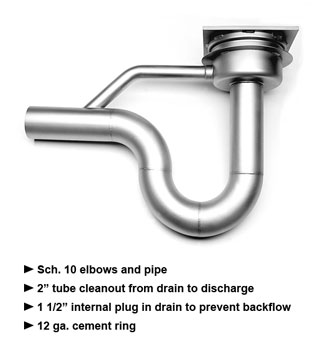

Stainless Steel Drain with P-Trap

Stainless Steel Drains with P-Trap comes standard without the optional crossover cleanout. We can fabricate these with outlet sizes from 2” through 8”.

(Limited Stocked Item)

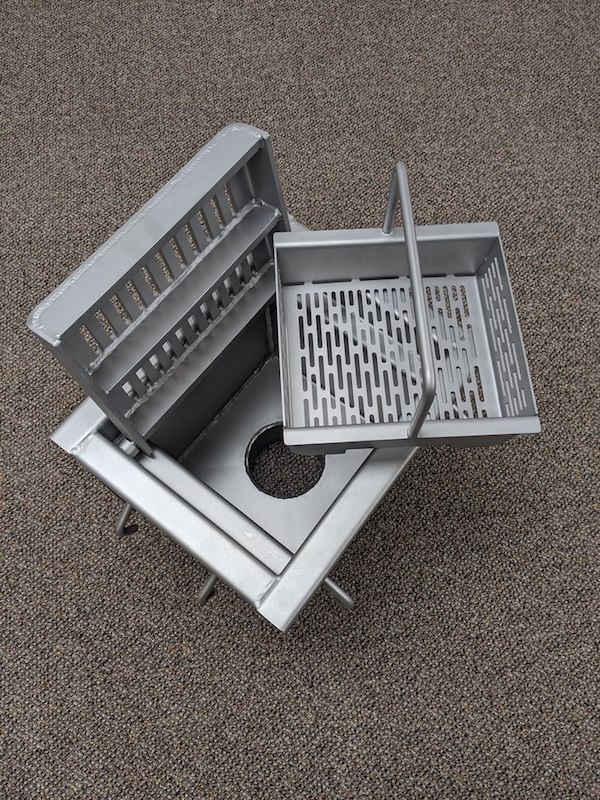

Stainless Steel Floor Sink

Stainless Steel Floor Sinks are used throughout process industries including institutional kitchens, restaurants, breweries, wineries, etc. These can fabricated in any size, with or without the “hinged cover” shown.

  • 12 Gauge Body
  • Hinged Cover or Non-Hinged Options
  • 1/2” Thick Solid or Bar Grate cover
  • 6”- 24” deep sump, radius corners
  • Concrete Anchors
  • 2”, 3”, 4”, 6”, 8” sch 10 Outlet
  • (1) Stainless steel basket
(Limited Stocked Item)

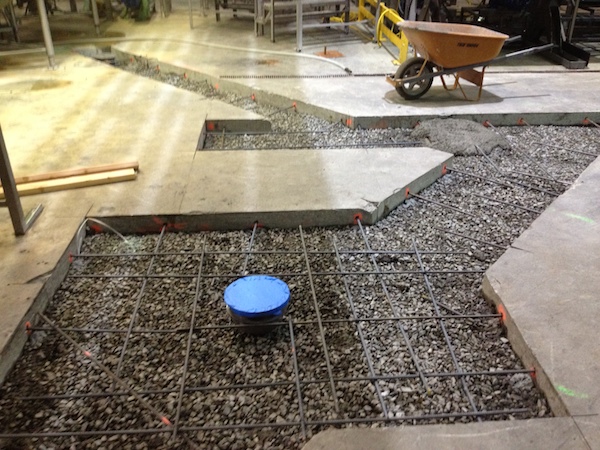

Stainless Drain Replacement
